Integrated Power Architecture
- OBC + DC/DC + HV PDU coordination
- Reduced inter-module harness complexity
- Unified protection strategy
CDU System Manufacturer
CDU Integrated System
OBC + DC/DC + HV PDU Solution
Integrated OBC, DC/DC, and HV PDU capability for compact OEM platforms, configured through project-specific engineering review.
Overview
Product overview
OEM-ready integrated charging, conversion, and HV distribution for compact EV platforms and Tier-1 programs.
TRHT CDU Integrated System combines OBC, DC/DC, and HV PDU functions to simplify vehicle power architecture and reduce interface risk between separately sourced modules.
Mechanical, cooling, and electrical interfaces are customized to OEM packaging constraints, with engineering support from architecture samples through series export production.
Capabilities
Key features
Integrated architecture, packaging efficiency, OEM customization, and production-ready reliability for vehicle procurement and engineering teams.
Compact Vehicle Packaging
- Shared enclosure concepts
- Optimized thermal and mechanical layout
- Installation envelopes for OEM platforms
OEM Interface Customization
- Connector and cooling interface options
- Control and communication mapping
- Documentation for engineering review
Program Support
- Prototype and validation builds
- Pilot production support
- Series release pathway
Specifications
Technical parameters
Baseline integration parameters. Final ratings are confirmed against your vehicle electrical architecture.
System type
OBC + DC/DC + HV PDU integrated solution
HV platform
Platform-matched HV voltage
LV output
Architecture-dependent LV conversion
Charging interface
OBC configuration matched to regional inlet strategy
Protection
Coordinated HV protection and isolation strategy
Communication
Vehicle control interfaces defined during engineering review
Application
Passenger EV, light commercial EV, custom OEM packs
Customization
OEM mechanical, cooling, and electrical interfaces
Ready to integrate a CDU on your OEM platform?
Share HV/LV architecture, charging standard, packaging limits, and volume targets — our engineers will propose a customization and production path.
Applications
Application scenarios
Configured for compact passenger EV, light commercial EV, and custom OEM architectures in international markets.
Passenger EV platforms
Space-constrained passenger vehicles needing coordinated OBC, DC/DC, and PDU packaging.
Request engineering review →Light commercial EV
LCV platforms seeking reduced supplier interfaces across charging and distribution.
Request engineering review →Custom OEM packs
Specialized OEM architectures requiring tailored integration and documentation.
Request engineering review →
Platform engineering programs
Early architecture programs evaluating integrated vs discrete power modules for EU, NA, and APAC release.
Request engineering review →Commercial
Program terms & compliance
Sample quantities, production timing, and compliance documentation are confirmed after the project scope and engineering requirements are reviewed.
- Sample and pilot scope
- Confirmed against the project stage, validation plan, component availability, and quantity requirements.
- Production timing
- Reviewed after technical requirements, interfaces, design scope, and quality documentation are aligned.
Quality & compliance support
- Project-specific automotive quality and compliance documentation is reviewed with engineering and quality teams.
Engineering
Customized CDU development
OEM/ODM engineering support from architecture definition through prototype validation and mass-production release.
System Architecture
Define OBC, DC/DC, and PDU boundaries against vehicle electrical requirements.
Mechanical & Thermal Design
Package integration with cooling and mounting constraints of the vehicle platform.
Prototype Development
Engineering samples for bench and vehicle integration trials before tooling commitment.
Validation Testing
Functional and electrical checks aligned to program acceptance criteria.
Mass Production Support
Process controls and quality gates to scale from pilot runs to series export supply.
Quality & Testing
Validation before shipment
Each CDU program is supported by electrical and functional verification suited to vehicle duty cycles and export reliability expectations.
- High Voltage Test
- Insulation Test
- Functional Test
- Temperature Test
- Communication Interface Check
Manufacturing
Mass production capability
Production planning from architecture samples toward approved series requirements for vehicle programs.
Prototype support
Architecture samples for electrical validation and vehicle packaging trials.
Small batch production
Pilot lots for certification, fleet trials, and early SOP readiness.
Series manufacturing
Controlled assembly and test flow for repeatable delivery to Europe, North America, and Asia-Pacific.
Factory
Factory & quality
Manufacturing, inspection, and testing capability behind every CDU shipment.
Manufacturing Capability
Dedicated assembly processes for integrated vehicle power modules.
Quality Inspection
Incoming and in-process checks aligned to automotive program reliability expectations.

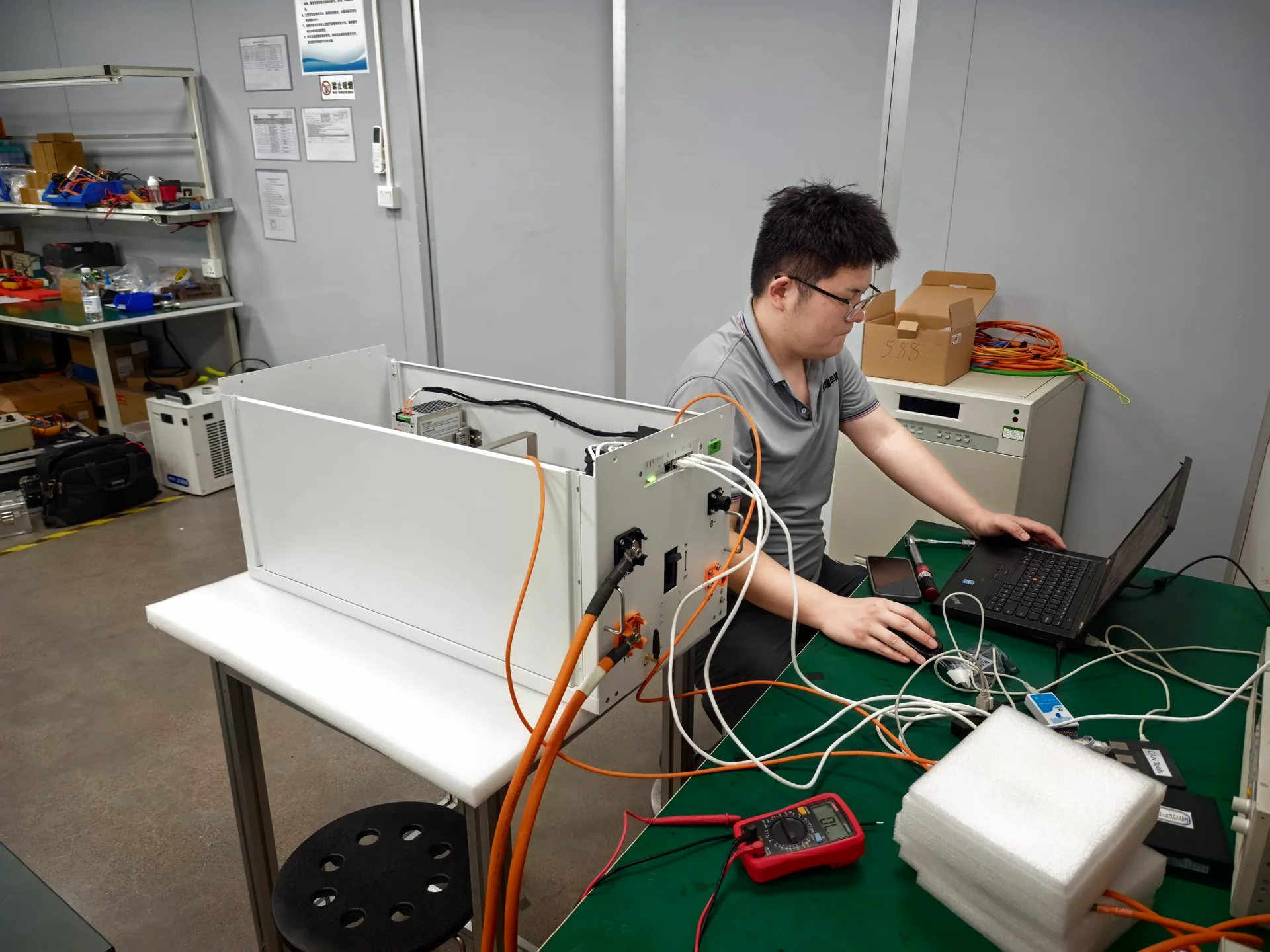

Production Testing
Functional and electrical testing before pack-out for overseas delivery.
FAQ
Frequently asked questions
What does the CDU Integrated System include?+
It combines onboard charging (OBC), DC/DC conversion, and HV PDU distribution into a coordinated OEM solution.
When should we choose CDU vs discrete modules?+
Choose CDU when packaging space, harness complexity, or multi-supplier interface risk favors an integrated architecture.
Can TRHT customize cooling and connectors?+
Yes. Mechanical, cooling, and electrical interfaces are defined during OEM engineering review.
Do you support overseas OEM and procurement teams?+
Yes. We support English RFQs and export programs for buyers in Europe, North America, and Asia-Pacific, including datasheet packages and engineering briefings.
How do I get a datasheet?+
Submit a datasheet request on the Contact page with your company email and product interest. TRHT will send the latest integration package for engineering review.
Need a customized CDU for your OEM platform?
Share HV/LV architecture, charging requirements, packaging, and volume targets. English RFQ support for EU, NA, and APAC engineering and procurement teams.
